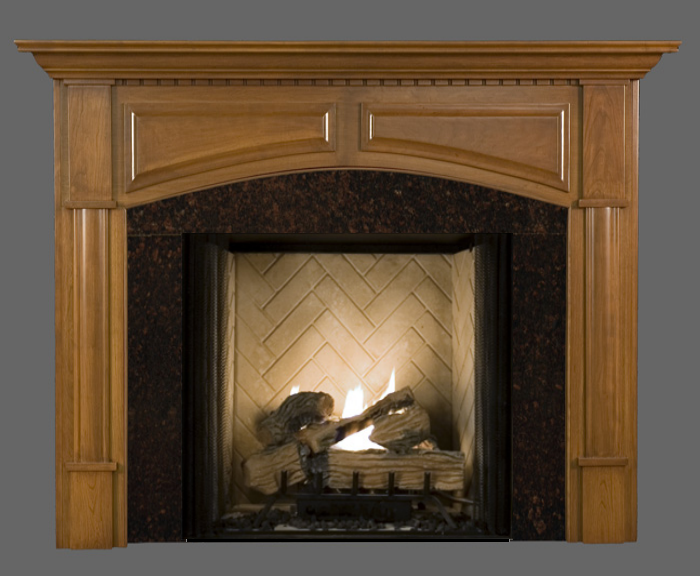

  • The Lexington shown in cherry.
  • The Lexington shown in semi gloss white.
  • The Lexington shown in semi gloss black.
  • Detail image of the Lexington fireplace mantel.
  • Performance antimicrobial finishes for wood products.

Lexington Wood Fireplace Mantel Custom

$735.00
Pricing Guide:  Show/Hide
Total QuantityBase price per unit

Discounts will appear in cart

Total quantity of 4x8 paneling in cart determines price per panel.

List price reflects purchase of at least 15 units.

SKU:
MCALX1SU/UNOW58OH42R4
Availability:
Unfinished normally ship within 10 business days. Primed, Painted or Stained normally within 15 business days
Shipping:
Free Shipping
1 = Side Clearance Left:

(Maximum Size: . Type: )
2 = Facing Width:

(Maximum Size: . Type: )
3 = Side Clearance Right:

(Maximum Size: . Type: )
4 = Firebox Opening Height:

(Maximum Size: . Type: )
5 = Firebox Opening Width:

(Maximum Size: . Type: )
6 = Facing Material Height:

(Maximum Size: . Type: )
7 = Hearth Extension Left:

(Maximum Size: . Type: )
8 = Hearth Extension Right:

(Maximum Size: . Type: )
9 = Facing Thickness:

(Maximum Size: . Type: )
10 = Left Facings Width:

(Maximum Size: . Type: )
11 = Right Facing Width:

(Maximum Size: . Type: )
12 = Hearth Height:

(Maximum Size: . Type: )
13 = Hearth Length:

(Maximum Size: . Type: )
14 = Hearth Depth:

(Maximum Size: . Type: )
Add a Note:

Product Description

Buy Now!madeusa55.jpg
An affordable Arched Mantel with a Classic Design, the Lexington Wooden Fireplace Mantel with decorative raised wood spandrel panels is offered in a variety of finishes. Each arched fireplace mantle is carefully crafted to give years of beauty, durability and style to your home. Simply enter the existing dimensions of your fireplace below and we will size a Lexington mantel surround to fit your needs! All stain grade mantels are made from a combination of hardwoods and veneers.
Paint grade product is made from solid poplar moldings and MDF which can be primed and painted.



Standard Dimensions
Shelf Depth = 7 1/2" when Return Depth is 1 1/2"
Shelf Length = Mantel Opening Width + 23 1/2"
Leg Width = 8"
Header Height = 16 1/4"


Not familiar with mantels? Check Mantel Components for additional information.

Price a Mantel Now Using Easy Steps 1, 2 and 3!

Calculate the dimensions for a custom mantel yourself by following steps 1, 2 & 3 or,
click here to complete our Fireplace Dimension Worksheet and we will do the calculations for you!


Step 1. Gather Your Fireplace and Facing Measurements.
Choose either the Standard or Full Wall illustration that best resembles your existing fireplace and facing, then note measurements 1-14. (Some answers might be 0.")



Step 2. Determine Mantel Size.
Wood mantels are sized using just 3 dimensions: the mantel opening width, opening height, and mantel return. To determine what dimensions you need, follow these basic guidelines:

Precise Mantel Opening Width
Equals Facing Width "2" less (minimum) 1"

Precise Mantel Opening Height
Equals Facing Height "6" less (minimum) 1/2"

Precise Mantel Return Depth
Equals Facing Thickness "9" plus (minim.) 1/2"

(Note: The mantel overlaps the outside edges of the facing. Make alterations to your facing prior to measuring.)Your mantel size may need to be altered due to the fireplace, wall, or hearth configuration. We will address this in the line drawing we send to you.

Step 3. Enter Measurements, Comments, Wood, Finish & Sizing Options.
Simply enter the 1-14 measurements you gathered in Step 1 in the fields below. If desired, enter a desired shelf height and desired inches of facing showing above and beside the firebox opening. Write a short note, if desired, choose a wood type and finish and the appropriate mantel opening width range, opening height range and return depth range. Enter the precise measurements for each, if you've calculated them. The price in the box at the bottom of the page changes as you make wood, finish and sizing selections.


Once you complete the checkout process, we will review your measurements and selections, and to insure a proper fit and customer satisfaction, you will receive a dimensioned line drawing of your custom mantel via email for your approval BEFORE your mantle is built and BEFORE your credit card is charged.

 Feel free to call us (800) 820-7177 M-F.




Warranty Information

One-Year Limited Warranty

Find Similar Products by Tag

arched  surround

Product Reviews

  1. A Stunning Mantel

    Posted by Jonathan Bethard on Aug 31st 2013

    Worth the wait! Shipping was SUPER FAST! The packaging was incredible. Perfect color match with the house trim (Golden Oak). A note for prospective buyers. The mantel is meant to cover just the slightest of the fireplace facing material. Ours worked out just fine. Make certain your measurements are precise.

    I still admire the mantel everyday and the carpet hasn't been installed yet.
