  • Westin in white
  • Mantel shown with raised up protective edge trim in paint grade unfinished
  • The Westin fireplace mantel shown in semi gloss white.

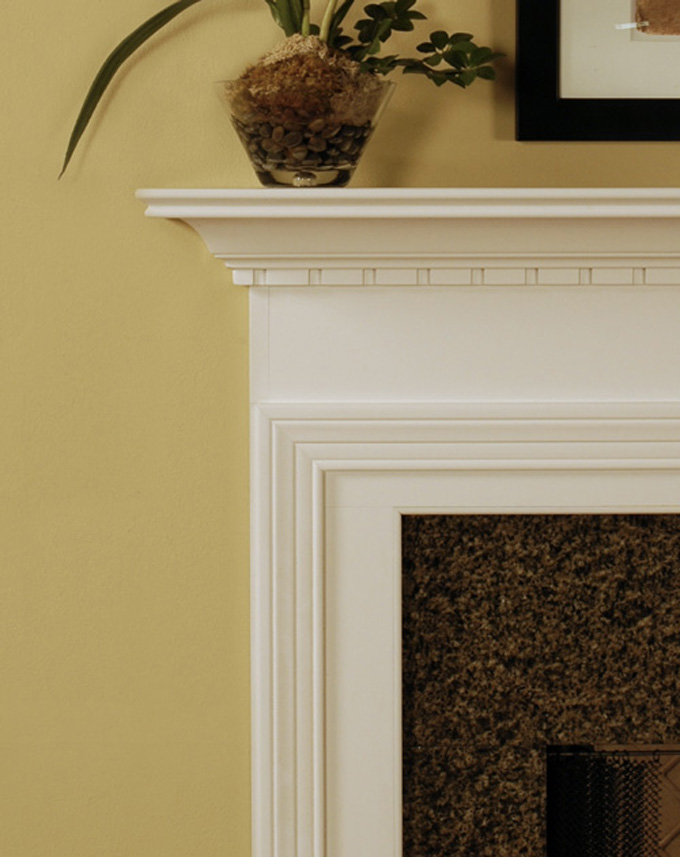

  • Detail image of Westin fireplace mantel.
  • Mantel shown with sparkling pebble granite.
  • Performance antimicrobial finishes for wood products.
  • Westin in paint grade
  • Westin fireplace mantel

Westin Custom Fireplace Mantel

$449.00
Pricing Guide:  Show/Hide
Total QuantityBase price per unit

Discounts will appear in cart

Total quantity of 4x8 paneling in cart determines price per panel.

List price reflects purchase of at least 15 units.

SKU:
MCPBWN1U/UNOW58OH42R4
Availability:
Unfinished normally ship within 10 business days. Primed, Painted or Stained normally within 15 business days
Shipping:
Free Shipping
1 = Side Clearance Left:

(Maximum Size: . Type: )
2 = Facing Width:

(Maximum Size: . Type: )
3 = Side Clearance Right:

(Maximum Size: . Type: )
4 = Firebox Opening Height:

(Maximum Size: . Type: )
5 = Firebox Opening Width:

(Maximum Size: . Type: )
6 = Facing Material Height:

(Maximum Size: . Type: )
7 = Hearth Extension Left:

(Maximum Size: . Type: )
8 = Hearth Extension Right:

(Maximum Size: . Type: )
9 = Facing Thickness:

(Maximum Size: . Type: )
10 = Left Facings Width:

(Maximum Size: . Type: )
11 = Right Facing Width:

(Maximum Size: . Type: )
12 = Hearth Height:

(Maximum Size: . Type: )
13 = Hearth Length:

(Maximum Size: . Type: )
14 = Hearth Depth:

(Maximum Size: . Type: )
Add a Note:

Product Description


The Westin traditional fireplace mantel surround is an affordable and attractive choice for those looking for clean lines with a touch of colonial design. The mantel leg trim includes ribbed molding with simple dentil molding under the mantle shelf. This mantel surround has strong character and is offered in six woods and a variety of finishes. Paint grade mantels are a combination of MDF and solid poplar moldings. Also all mantels now include the raised up protective top trim. All stain grade mantels are made from a combination of hardwoods and veneers.

Standard Dimensions
Shelf Depth = 7" when Return Depth is 1 1/2"
Shelf Length = Mantel Opening Width + 18 1/2"
Leg Width = 5 3/4"
Header Height = 12"

Not familiar with mantels? Check Mantel Components for additional information.

Price a Mantel Now Using Easy Steps 1, 2 and 3!

Calculate the dimensions for a custom mantel yourself by following steps 1, 2 & 3 or,
click here to complete our Fireplace Dimension Worksheet and we will do the calculations for you!

Step 1. Gather Measurements.
Choose either the Standard or Full Wall illustration and gather measurements 1-14. (Some answers might be 0.")


  Full Wall Mantel Illustration

Step 2. Determine Mantel Size.
Wood mantels are sized using just 3 dimensions: the mantel opening width, opening height, and mantel return. To determine what dimensions you need, follow these basic guidelines:

Wood Mantels vs. Facing SystemPrecise Mantel Opening Width
Equals Facing Width "2" less (minimum) 1"

Precise Mantel Opening Height
Equals Facing Height "6" less (minimum) 1/2"

Precise Mantel Return
Equals Facing Thickness "9" plus (minimum) 1/2"

(Note: The mantel overlaps the outside edges of the facing. Make alterations to your facing prior to measuring for a new mantel.)

Your mantel size may need to be altered due to obstructions on the fireplace, the wall, or the hearth configuration. We will try to address this in our line drawing reply to you.


Step 3. Enter Measurements, Comments, Wood, Finish & Sizing Options.
Simply enter the 1-14 measurements you gathered in Step 1 in the fields below. If desired, enter a desired shelf height and desired inches of facing showing above and beside the firebox opening. Write a short note, if desired, choose a wood type and finish and the appropriate mantel opening width range, opening height range and return depth range. Enter the precise measurements for each, if you've calculated them. The price in the box at the bottom of the page changes as you make wood, finish and sizing selections.


Once you complete the checkout process, your measurements and selections will be reviewed by Mantelcraft. To insure accuracy, proper fitting and customer satisfaction, you will receive a dimensioned line drawing of your custom mantel via email for your approval BEFORE your mantle is built and BEFORE your credit card is charged.


Feel free to phone in your order.
Call (800) 820-7177 M-F.

Warranty Information

One-Year Limited Warranty
